Обзор продукта

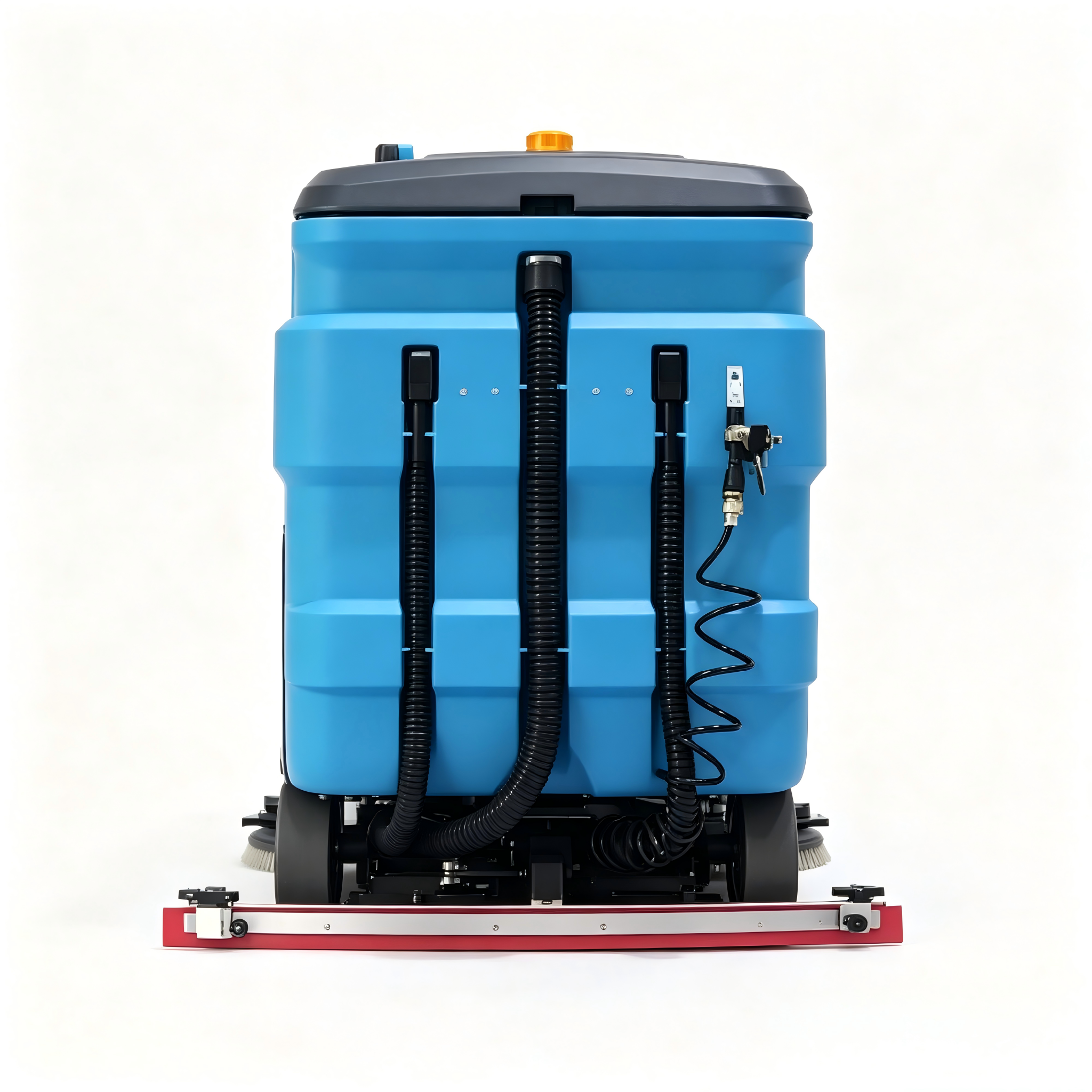

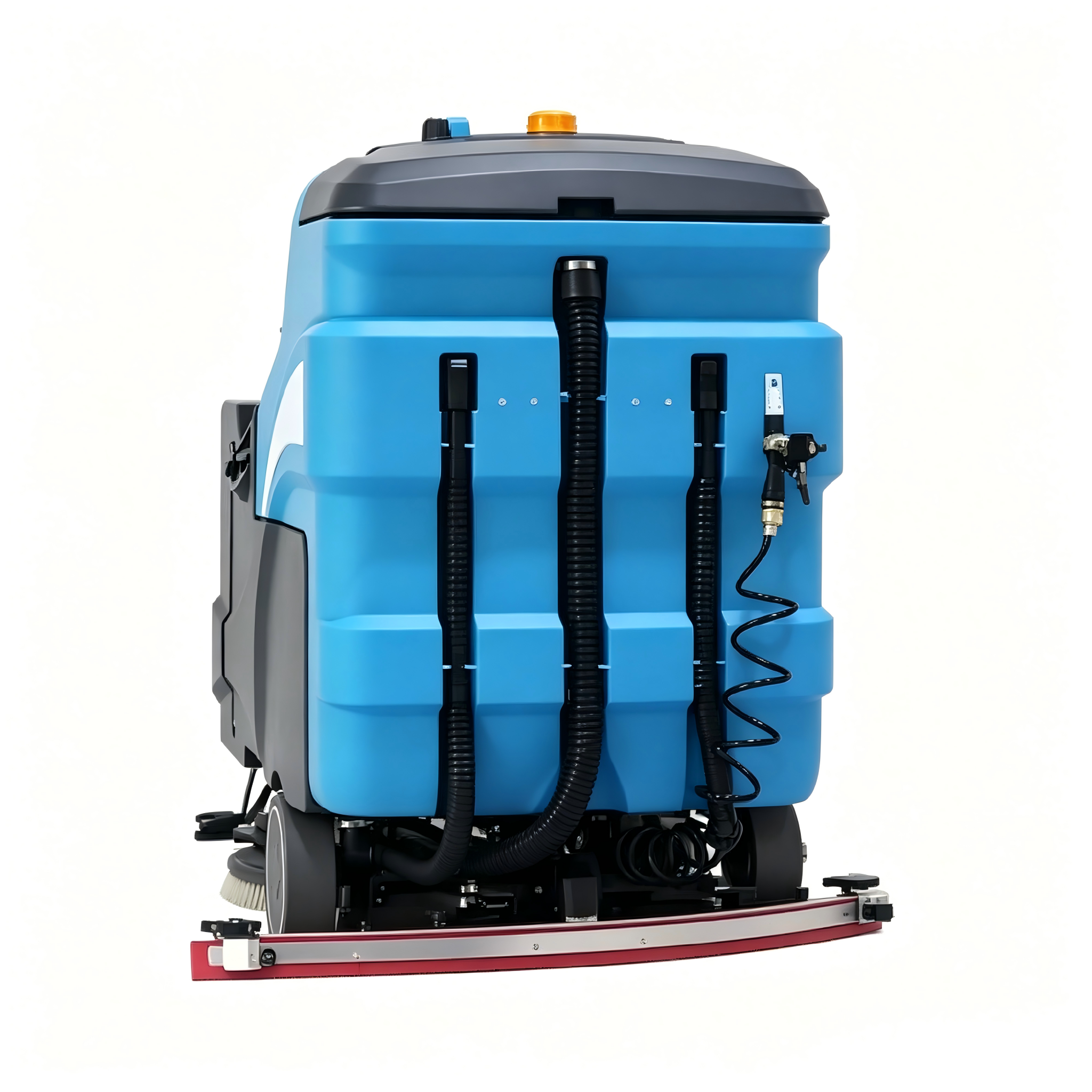

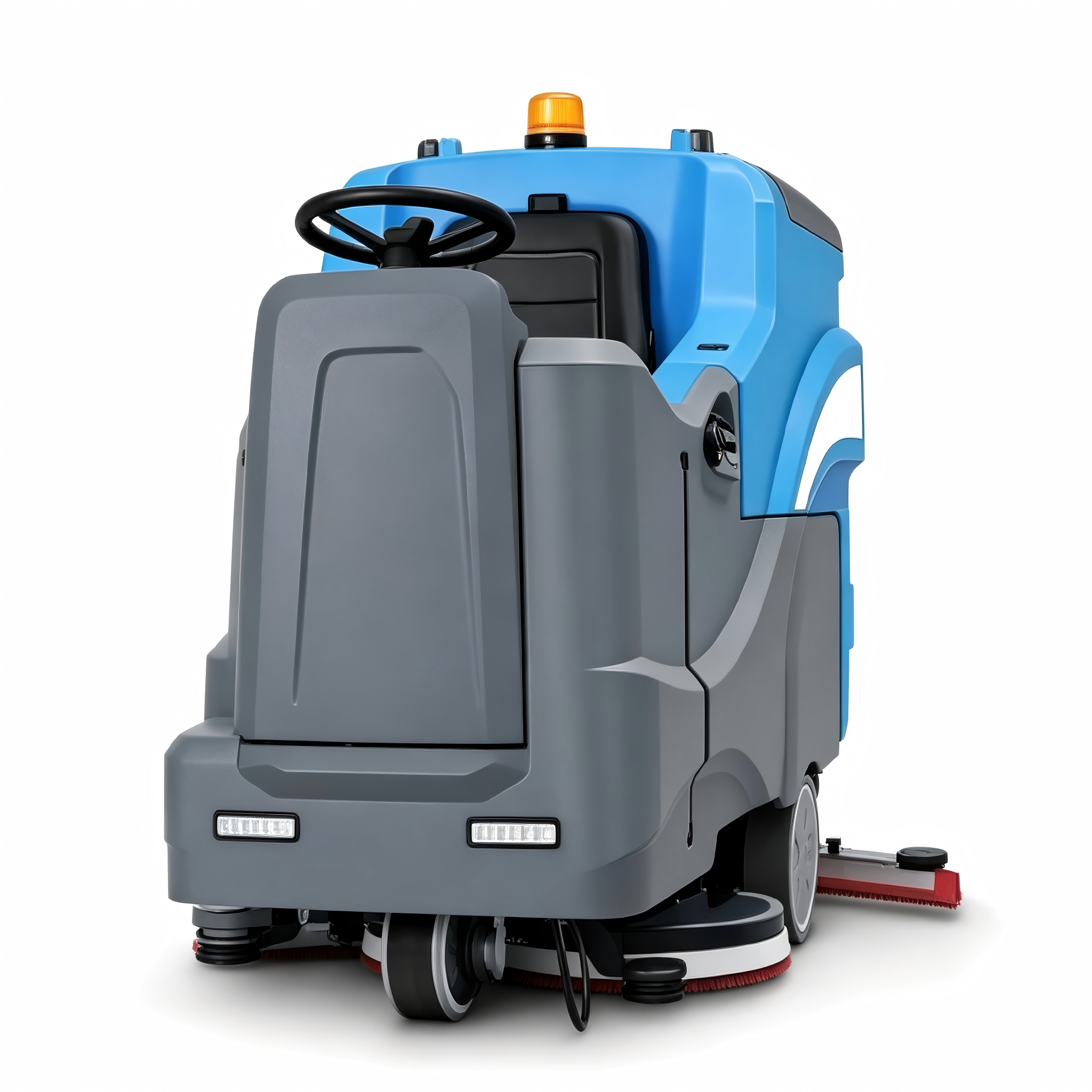

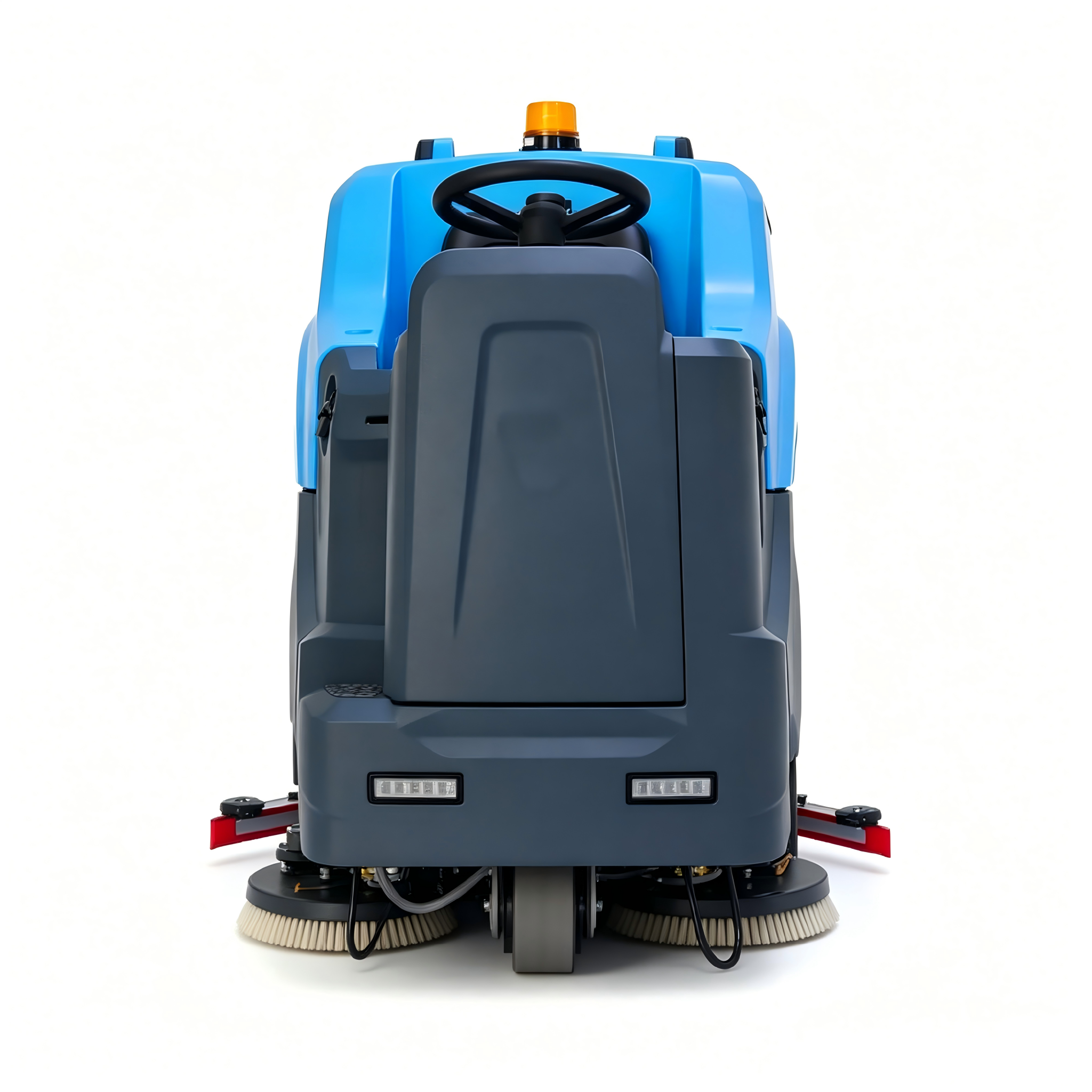

The JM1060 Large Ride-On Floor Scrubber is the flagship of our scrubber product line — built for airports, large manufacturing plants, logistics mega-hubs, and any environment where maximum floor cleaning output is the priority. Its twin 1020 mm disc configuration delivers the broadest scrubbing path in our range, covering up to 10,000 m² per hour and dramatically reducing the number of passes — and the time — required to complete large floor areas. The six-battery 36V/200Ah power system provides 4–5 hours of uninterrupted heavy-duty operation, while the 240 L clean water and 280 L dirty water tanks support continuous working across the full battery life without refilling. An anti-rollover support bracket, automatic seat-belt safety system, and front-wheel-drive layout combine to deliver both productivity and operator safety in demanding industrial environments.
Технические характеристики
| Нет. | Параметр | Ценить |
|---|---|---|
| 1 | Модель | JM1060 |
| 2 | Батарея | 36V / 200Ah × 6 (Lithium Option Available) |
| 3 | Мощность дискового двигателя | 600 W × 2 |
| 4 | Мощность вакуумного двигателя | 550 W × 2 |
| 5 | Резервуар для чистой воды | 240 L |
| 6 | Резервуар для грязной воды | 280 L |
| 7 | Disc Diameter | 1020 mm × 2 (Double Disc) |
| 8 | Ширина скребка | 1300 mm |
| 9 | Эффективность уборки | 8000–10000 m²/h |
| 10 | Рабочее время | 4–5 Hours |
| 11 | Вес машины | 620 kg |
| 12 | Габариты (Д×Ш×В) | 1870 × 1300 × 1520 mm |
| 13 | High-Pressure Gun | Rear-Mounted |
| 14 | Тип кисти | Double Disc |
| 15 | Safety | Anti-Rollover Bracket + Adjustable Seatbelt |
| 16 | Система привода | Front-Wheel Drive — Pivot Turning |
| 17 | Indicators | Clean Water, Dirty Water, Fault Warning Lights |
Основные характеристики
- Twin 1020 mm Disc System: The widest scrubbing discs in our product range — each 1020 mm disc independently driven at 600W — covering the maximum possible area per pass.
- 10,000 m²/h Peak Cleaning Efficiency: At full speed, the JM1060 cleans the equivalent of a full FIFA football pitch every 6 minutes — making it the highest-output scrubber in our lineup.
- 240/280 L Twin Tank System: The largest clean (240 L) and dirty (280 L) water tanks we offer — the entire 4–5 hour working shift is achievable without a single tank stop.
- 36V / 200Ah × 6 Battery Pack: Six large-capacity batteries provide the sustained power output needed to drive twin high-torque disc motors and dual vacuum motors simultaneously over extended shifts.
- Front-Wheel Drive with Pivot Turning: Despite its large footprint, the front-drive layout allows the JM1060 to pivot and turn in surprisingly tight spaces, maintaining productivity in complex floor layouts.
- Anti-Rollover Safety Bracket: Structural safety frame prevents tipping on ramps, loading bay approaches, and uneven floor transitions — a critical safety feature for large heavy machines.
- Adjustable Seatbelt Safety System: Operator seat with adjustable seatbelt accommodates different body sizes and ensures operator retention safety in all operating conditions.
- Rear-Mounted High-Pressure Water Gun: Integrated pressure washer for targeted spot cleaning of oil stains, tyre marks, and heavily soiled zones without a separate cleaning machine.
- Triple Fault Warning System: Dedicated indicator lights for clean water level, dirty water full, and system fault conditions — preventing unplanned downtime and protecting floor surfaces.
Сценарии применения
- Airports — departure halls, terminals, and cargo areas
- Large logistics mega-hubs and fulfilment centres (200,000 m²+)
- Automotive manufacturing plants and assembly lines
- Large shopping malls and department store basement car parks
- Exhibition centres, convention halls, and indoor arenas
- Hospital main corridors, underground car parks, and service levels
- Food processing facilities and cold chain logistics floors
