Product Overview

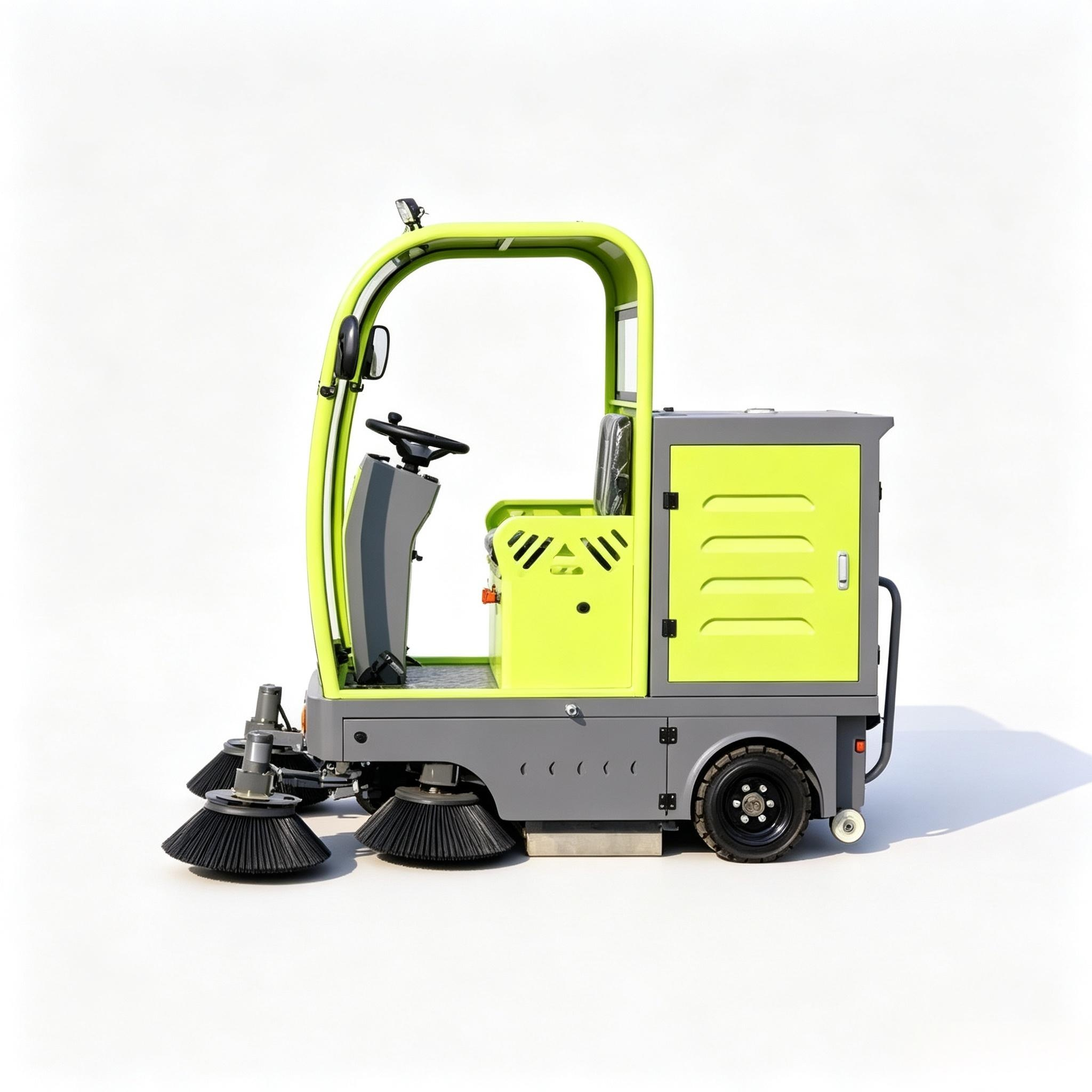

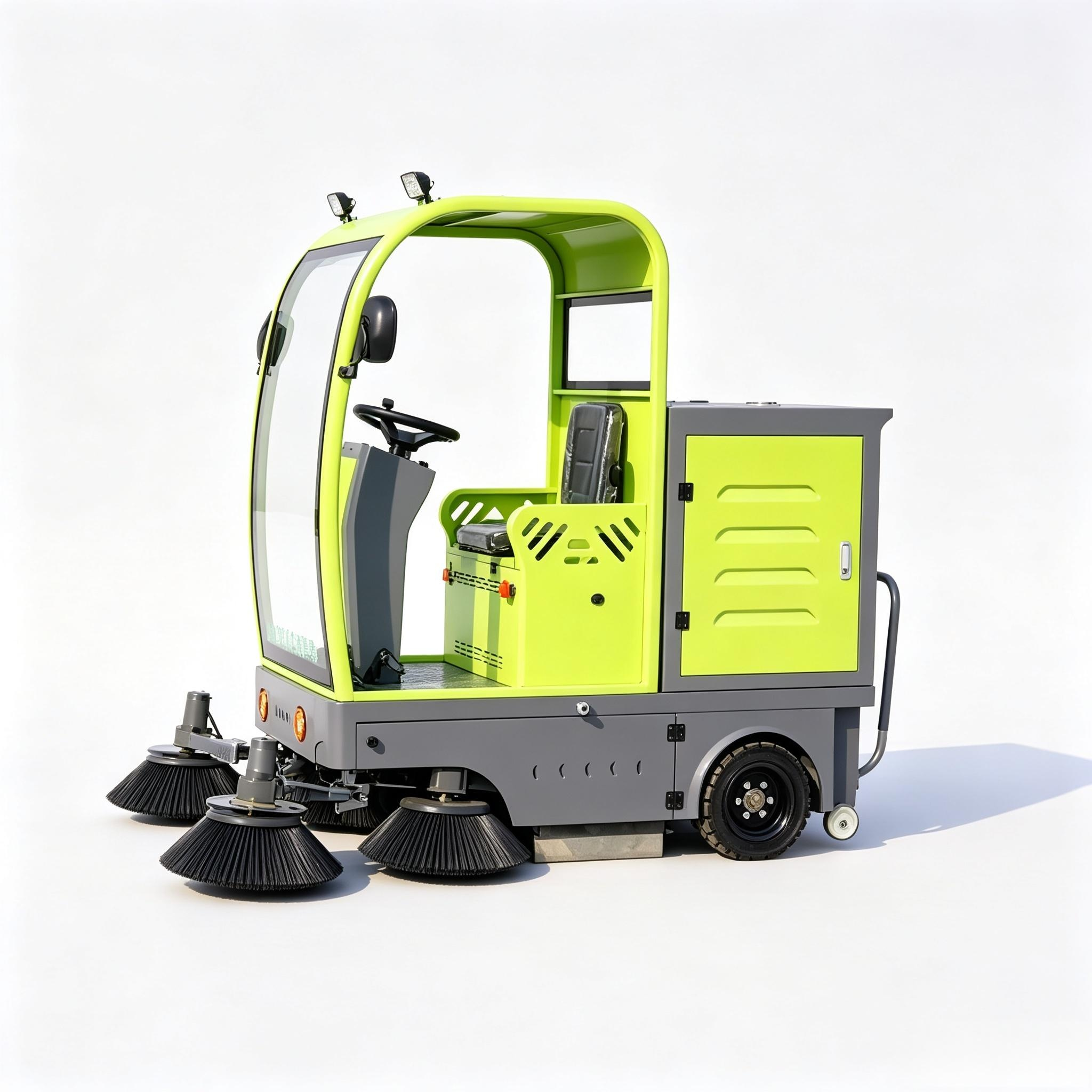

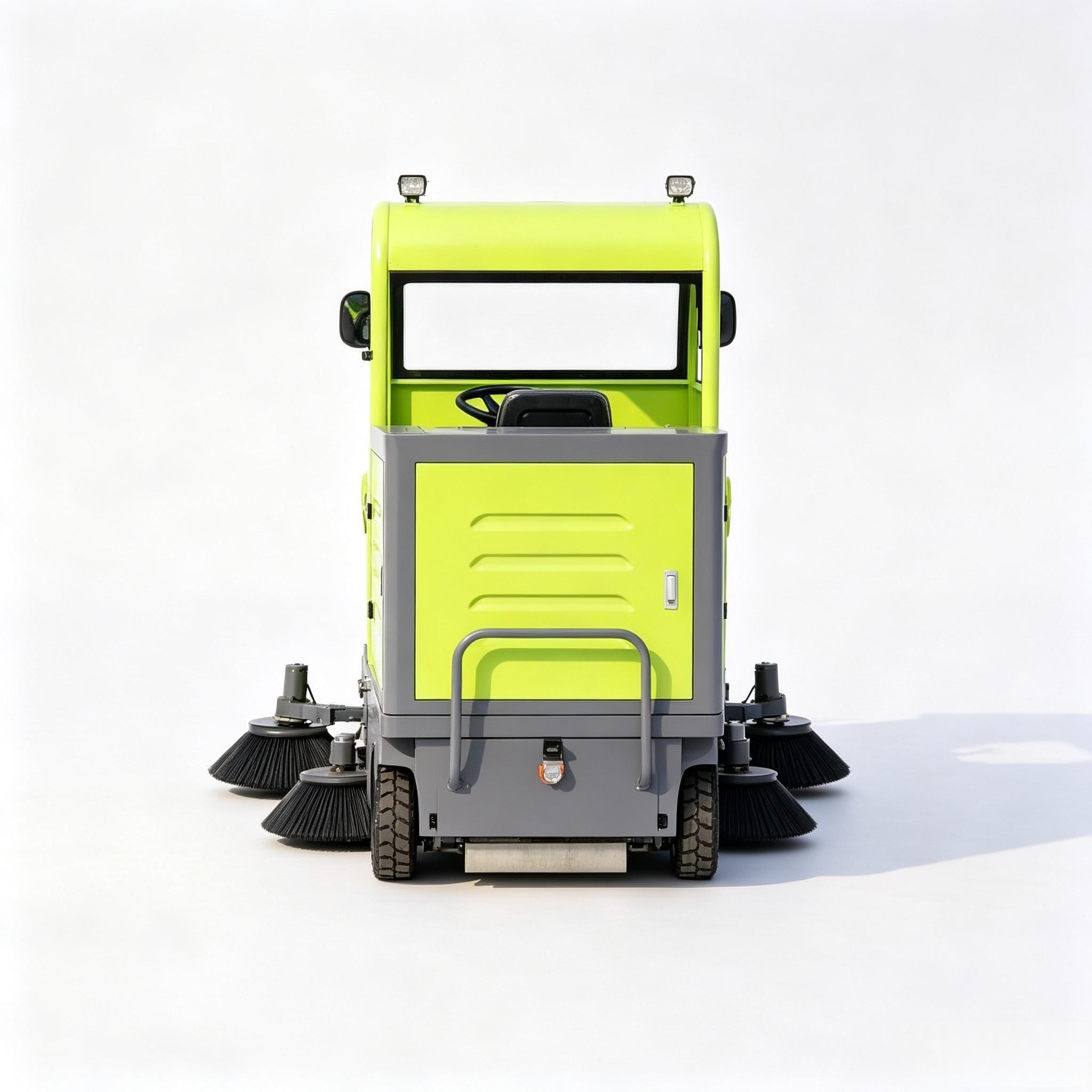

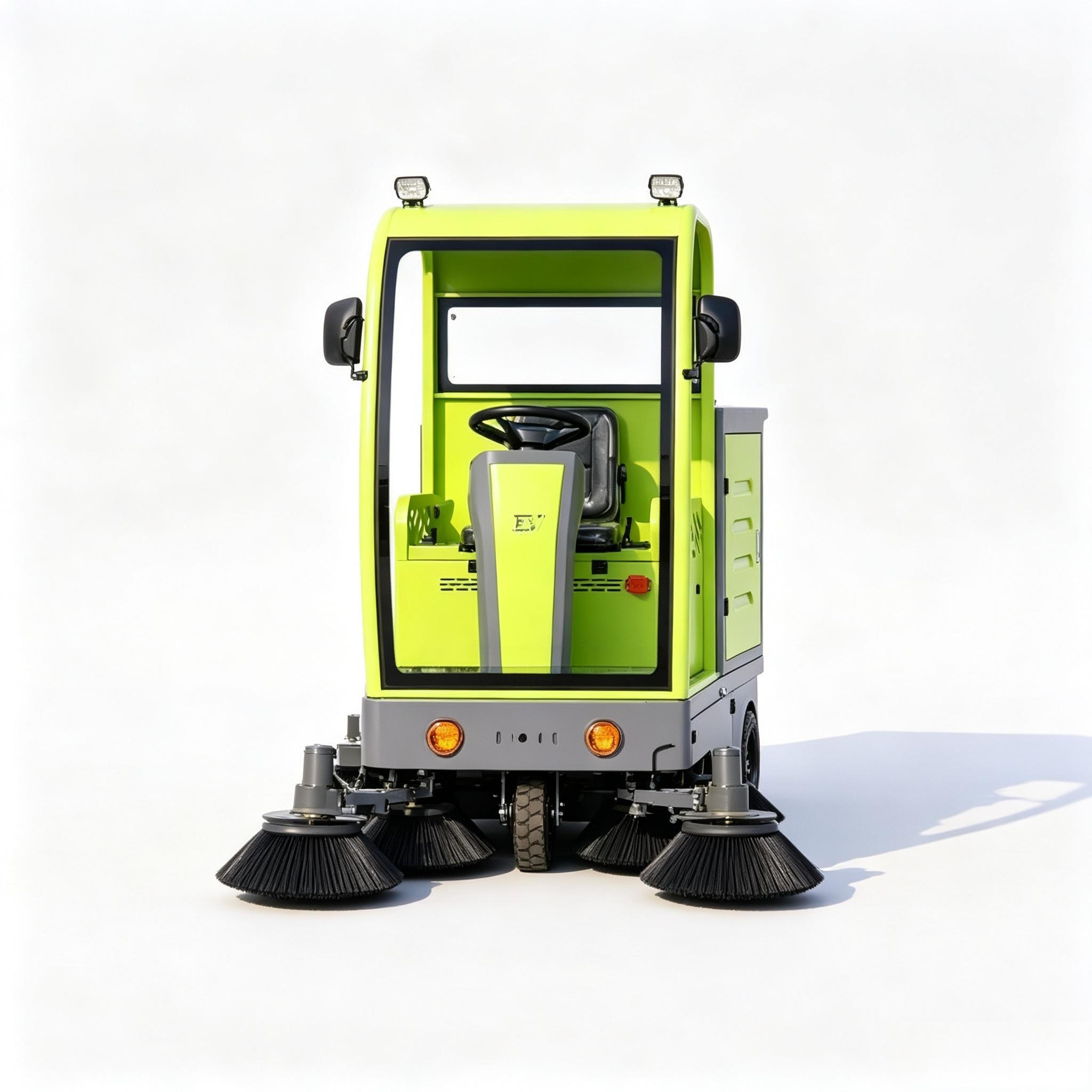

The I-22 is a high-performance semi-enclosed three-wheeled ride-on road sweeper designed for all-weather municipal and industrial maintenance. Boasting an expansive 180 cm cleaning width and an impressive efficiency of 8,000 m²/h, it offers superior cleaning productivity. The semi-enclosed cab canopy protects the operator from direct sunlight and light rain while maintaining excellent 360-degree visibility. Powered by a heavy-duty 48V/70A battery system and 1200W DC drivetrain, the I-22 ensures reliable, zero-emission sweeping shift after shift.
Technical Specification
| No. | Parameter | Value |
|---|---|---|
| 1 | Model | I-22 |
| 2 | Type | Semi-enclosed Three-wheeled Sweeper |
| 3 | Overall Dimensions | 190 × 180 × 180 cm (L×W×H) |
| 4 | Gross Weight | 520 kg |
| 5 | Cleaning Width | 180 cm |
| 6 | Cleaning Efficiency | 8,000 m²/h |
| 7 | Hopper Capacity | 220 L |
| 8 | Water Tank Capacity | 60 L |
| 9 | Battery | 48V / 70A (4 Pcs) |
| 10 | Working Hours | 3 – 4 h |
| 11 | Driving Power | 1200W DC Motor |
| 12 | Body Material | Reinforced Steel Sheet with Powder Coating |
| 13 | Tires | 350-8 Industrial Solid Tire × 3 |
| 14 | Gradeability (Max) | 25% |
| 15 | Max Travel Speed | 10 km/h |
Key Outstanding Features
- Expansive 180 cm Cleaning Path: Wide dual-side brush arrangement sweeps broad paths in a single pass, delivering up to 8,000 m²/h area coverage.
- Operator Sun & Rain Canopy: The semi-enclosed roof design provides comfort and environmental shielding for long outdoor operational shifts.
- Generous 220L Waste Capacity: Large hopper volume accommodates substantial quantities of dust, sand, leaves, and light industrial waste.
- Efficient Water Spray Dust Suppression: Clean water mist suppression effectively traps airborne particulates at the brushes before they disperse.
- Robust Steel Shell Architecture: Reinforced steel body panels finished with durable powder coating ensure maximum impact protection.
- Smooth Handling & Solid Traction: Three-wheel balance geometry with puncture-free solid tires provides high stability and up to 25% climbing ability.
Application Scenarios
- Industrial parks, production zones, and exterior perimeter roads
- University campuses, hospital grounds, and municipal parks
- Large outdoor shopping malls, transport terminals, and train platforms
- Port logistics yards, freight terminals, and container depots
- Residential townships and commercial business districts
